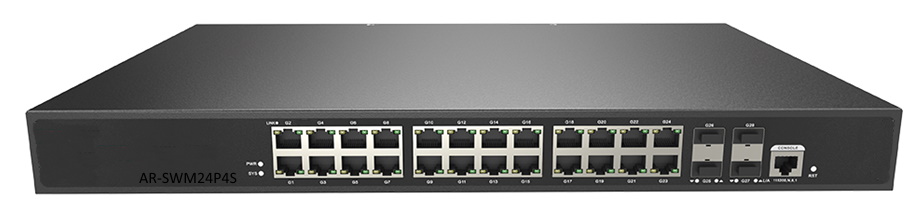

| Model | AR-SWM24G4S |
| Interface |
| Port | 24*10/100/1000Base-T RJ45 ports 4*100/1000Base-X uplink SFP 1*RS232 console port(115200,N,8,1) |
| Ethernet Port | Port 1-24 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission | 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or cat6 UTP(≤100 meter) |
| SFP Slot Port | Gigabit SFP,(single-mode / multi-mode, single fiber / dual fiber optical module) |
| Optical Cable/ Distance | Multi-mode: 850nm 0 ~ 550M,single-mode: 1310nm 0 – 40KM, 1550nm 0 – 180KM. |
| ic Parameter |
| Management Type | L2+ |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3x |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Switching Capacity | 192Gbps |
| Forwarding Rate@64byte | 41.7Mpps |
| MAC | 8K |
| Buffer Memory | 4.1M |
| Jumbo Frame | 10K |
| LED Indicator | Power: PWR(yellow), System: SYS(yellow), Network: Link/Act(yellow), Fiber port: L/A(green) |
| Reset | button factory reset |
| Power Supply |
| Total PWR / Input Voltage | 60W (AC100-240V-DC48-72V) |
| Power Consumption | Standby<18W, Full load<35W |
| Power Supply | power supply, AC 100-240V 50-60Hz 1.0A or 48-72V DC |
| Physical Parameter |
| Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing |
| Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing |
| Dimension (L*W*H) | 440*290*44.5mm |
| Weight | <3.6kg / <4.0kg |
| Installation | 19 inch 1U |
| Warranty |
| Warranty | 3 years |
| Network Management |
| Interface | IEEE802.3X (Full-duplex) Broadcast storm control based on port speed The speed limit of the message flow in the access port. The minimum particle size is 64Kbps. Port temperature protection setting Port green Ethernet Energy-saving setting |
| Layer 3 | L2+ Network management IPV4/IPV6 management L3 soft routing forwarding, Static route, Default route @ 128 pcs, APR @ 1024 pcs |
| VLAN | 4K VLAN based on port, IEEE802.1q VLAN based on the protocol VLAN based on MAC QinQ configuration Port configuration of Access, Trunk, Hybrid |
| Port Aggregation | LACP, Static aggregation Max 10/14 aggregation groups and 8 ports per group |
| Spanning Tree | STP (IEEE802.1d),RSTP (IEEE802.1w),MSTP (IEEE802.1s) |
| Multicast | IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out MLD Snooping v1/v2,Multicast VLAN |
| Port Mirroring | Bidirectional data mirroring based on port |
| QoS | Diff-Serv QoS,Priority Mark/Remark 8*Output queues of each port 802.1p/DSCP priority mapping Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based Packet Filtering Flow-based Redirection Flow-based Rate Limiting |
| ACL | L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. Port-based Issuing ACL. ACL based on port and VLAN |
| Security | User hierarchical management and password protection SSH 2.0,SSL,Port isolation,ARP message speed limit Broadcast storm control,Backup for host datum IEEE802.1X & MAC address authentication Mac black holes,IP source protection AAA & RADIUS,MAC learning limit ARP inspection,Anti-DoS attack IP-MAC-VLAN-Port binding |
| DHCP | DHCP Client,DHCP Snooping,DHCP Server,DHCP Relay |
| Management | Console/AUX Modem/Telnet/SSH2.0 CLI Web Management (HTTPS) Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP V1/V2C/V3 One-key recovery NTP,System work log,Ping Test Cable Diagnose,LLDP |
| System | Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later; Category 5 Ethernet network cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
