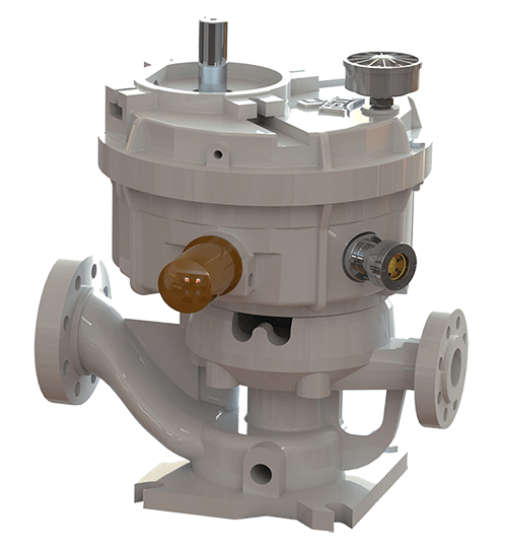

Type | High-Speed Integrally Geared Single-Stage Centrifugal Pump |
Head | 30 to 915 m (100 to 3,000 ft) |
Flow Rate | 0 to 230 gpm us (0 to 60 m3/hr) |
Max. Power Required | 37 kW (50 hp) |
Max. Suction Pressure | 32 bar (450 psi) |
Speed Range | 6,000 to 20,000 rpm |
Mounting Configuration | Vertical |
Suction and Discharge Flanges | 3”x2”, 600# or other ratings (ANSI RF) |
