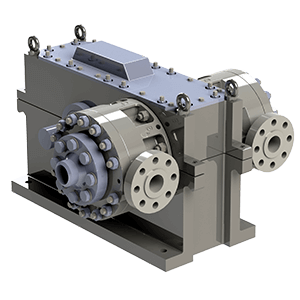

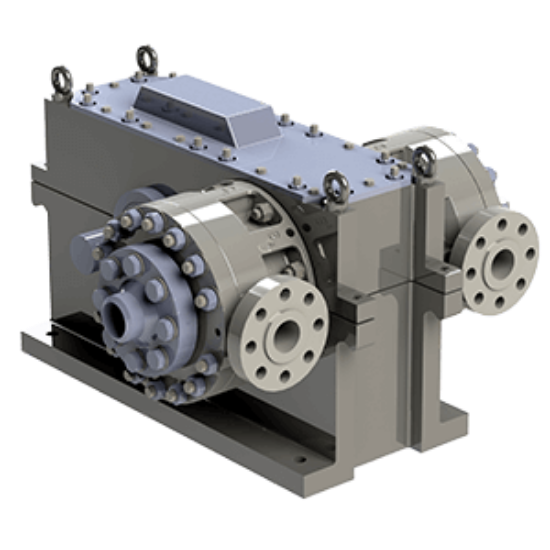

Type | High-Speed Integrally Geared Multi-Stage Centrifugal Pump |
Head | 1,000 to 8,500 ft (300 to 2,600 m) |
Flow Rate | 65 - 500 gpm (15-115 m3/hr) |
Max. Power Required | 600 kW (800 hp) |
Max. Suction Pressure | 30 bar (440 psi) |
Speed Range | 8,000 to 22,000 rpm |
Mounting Configuration | Horizontal |
Suction and Discharge Flanges | 4”x3”, 300#, 600#, 900# or 1,500#(ANSI RF or RTJ) |
