Introduction

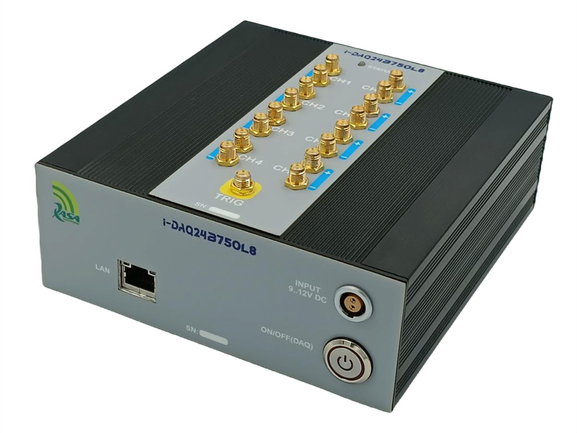

i-DAQ24B750L8 is an advanced high-performance and low-cost Ethernet data acquisition module that can be installed without opening the chassis; With a large FIFO of 8M Sample, the maximum sampling rate of i-DAQ24B750L8 is up to 750 KS/s with 8 A/D converters simultaneously sampling on each channel, with an emphasis on continuous, non-stop, high-speed, streaming data of samples to host memory. Plug in the modules to access collected data. Reliable and rugged enough for industrial applications yet sufficiently affordable for home systems, the i-DAQ24B750L8 DAQ module provides an easy and efficient means of adding measurement and control capabilities to RJ45-capable computers.
Specifications
Analog Input
Channels: 8 differential
Resolution: 24-Bit ADC
Max. Sampling Rate: 750 KS/s per channel
FIFO Size: 1M samples
Overvoltage Protection: 8.19 Vp-p
Input Impedance: 6.25 kΩ
Trigger Reference: Digital triggers
Trigger Mode: Start/Stop
CMRR: 94dB
Analog inputs: SMA
General
Dimensions (W x H x D): 155 x 65 x 145 mm
Power Consumption: Typ.: 8W @ 9V
Power Requirements: 9 ~ 12VDC
Ethernet: 1 x GBit-LAN (RJ45)
Weight: 0.95 kg (typical)
OS Support Up to Windows 10
