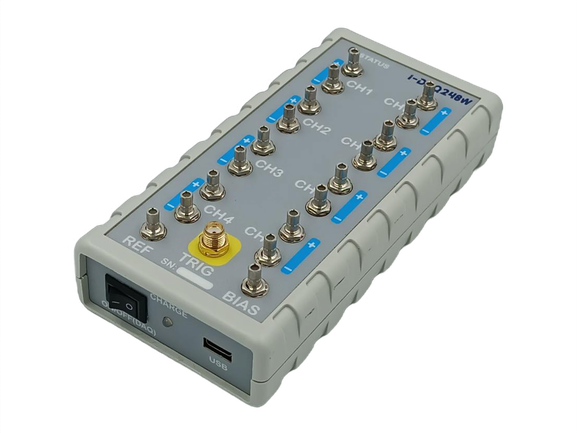

نمونه بردار آنالوگ به دیجیتال 8 کانال ۲۴ بیتی با نرخ نمونه برداری 8KSPS و ارتباط WiFi

Specifications

• Up to 8 Low-Noise PGAs and 8 High-Resolution Simultaneous-Sampling ADCs
• Resolution: 24-Bit ADC
• Sampling Rate: 250 SPS to 8 KS/s per channel
• FIFO Size: 1M samples
• Overvoltage Protection: 5Vp-p
• Input Impedance: 6.25 kΩ
• Trigger Reference: Digital triggers
• Trigger Mode: Start/Stop
• CMRR: -110 dB
• Analog inputs: SMB
• Input-Referred Noise: 1 μVPP (70-Hz BW)
• Input Bias Current: 300 pA
• Programmable Gain: 1, 2, 4, 6, 8, 12, or 24
• Power Consumption: Typ.: 1.8W @ 3.7V
• Power Requirements: 3.3 ~ 5VDC
• Conectivity: WiFi
• OS Support Up to Windows 10
