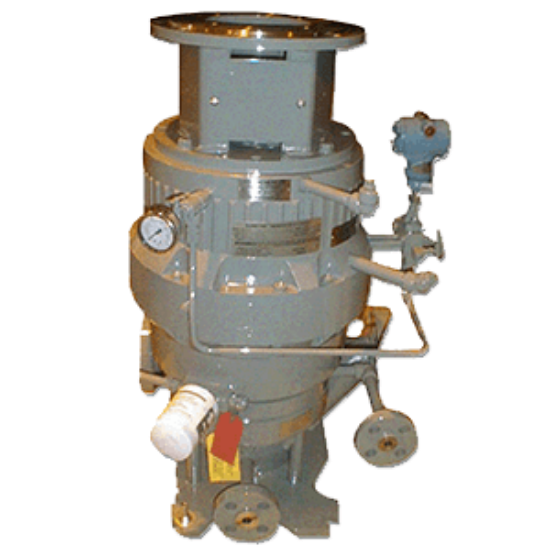

Type | High-Speed Integrally Geared Single-Stage Centrifugal Pump |
Head | 800 to 1,920 m (2,600 to 6,300 ft) |
Flow Rate | 20 to 90 m3/hr (100 to 400 gpm) |
Max. Power Required | 300 kW (400 hp) |
Max. Suction Pressure | 127 bar (1800 psi) |
Speed Range | 10,000 to 24,000 rpm |
Mounting Configuration | Vertical |
Suction and Discharge Flanges | 3”x2”, 600#, 900#, 1500# (ANSI RF or RTJ) |
