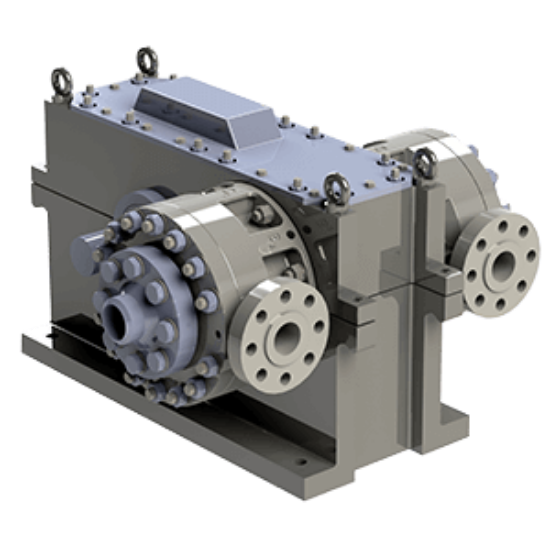

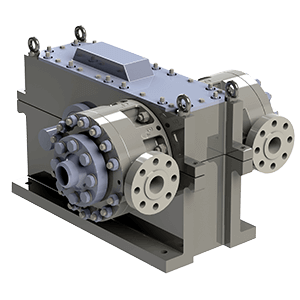

Type | High-Speed Integrally Geared Multi-Stage Centrifugal Pump |
Head | 350 - 13,500 ft (100 to 4,100 m) |
Flow Rate | 750-1400 gpm (170-320 m3/hr) |
Max. Power Required | 2,500 kW (3350 hp) |
Max. Suction Pressure | 70 bar (1,000 psi) |
Speed Range | 3,000 to 29,000 rpm |
Mounting Configuration | Horizontal |
Suction and Discharge Flanges | 6”x6” or 8”x6”, 600# ,900#, or2,500# (ANSI RF or RTJ) |
